The LHB Air Classifier is a new multi-application classifier by our independent R & D, combined the advantages of inertial classification technology and centrifugal classification technology. Technical performance has a qualitative leap compare with traditional vertical and horizontal turbine classifier.
Main features:
It is applied for all kinds of powder materials classifying and cleaning, also it can be used to remove coarse particles from ultrafine and nano-powder.
Working Principle

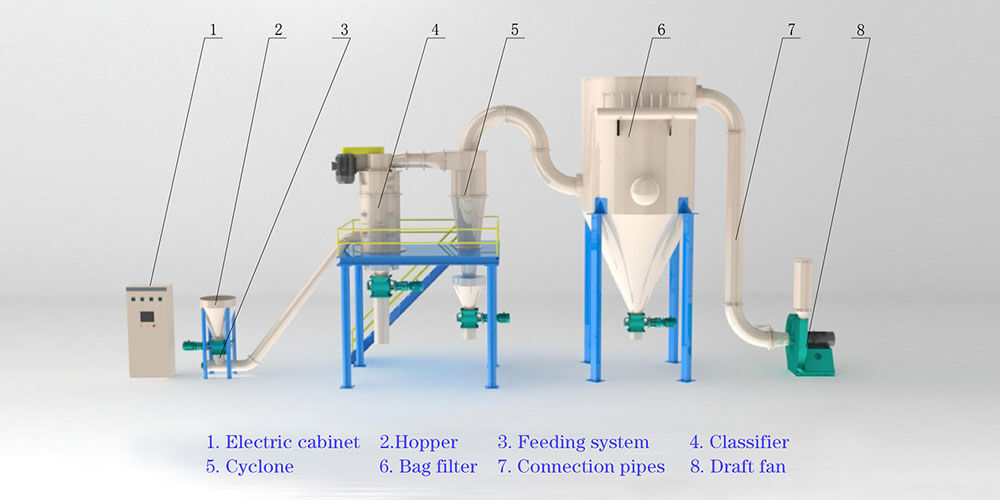

The materials enter the self-diversion classification zone for the first classification from the feed system. Most of the coarse particles are separated in advance, a small amount of coarse particles are carried by the fine powder into the turbine classification zone for the second separated by the ascending airflow. The fine powder enters the collector through the classification wheel, the coarse particles are discharged from the discharge valve of the classifier.
Performance Advantages
● Low energy consumption: at the same processing capacity, energy consumption is reduced by 50% compared with other horizontal and vertical classifiers.
● High efficiency: With the same processing capacity, the classification efficiency is 50% higher than other horizontal and vertical classifiers.
● High precision: high classification fineness, completely eliminate oversize particles and sieve residues in the product.
● Low speed: with the same classification particle size, the classification wheel speed is 50% lower than other horizontal and vertical classifiers. When producing powders with Mohs hardness <5, the classifying wheel has no wear; when producing powders with Mohs hardness ≥7, the service life of the classifying wheel is increased by 5 to 8 times compared with other horizontal and vertical types.
● High output: the output of mainframe can reach 100t / h.
● Full structure: According to different special requirements, a dedicated hierarchical structure can be configured.
● It can form a closed or open circuit system with ball mills, Raymond mills, impact mills, jet mills and other grinding equipment.
● Negative pressure production, no dust pollution, excellent environment.
● High automatic, strong stability and easy operation.

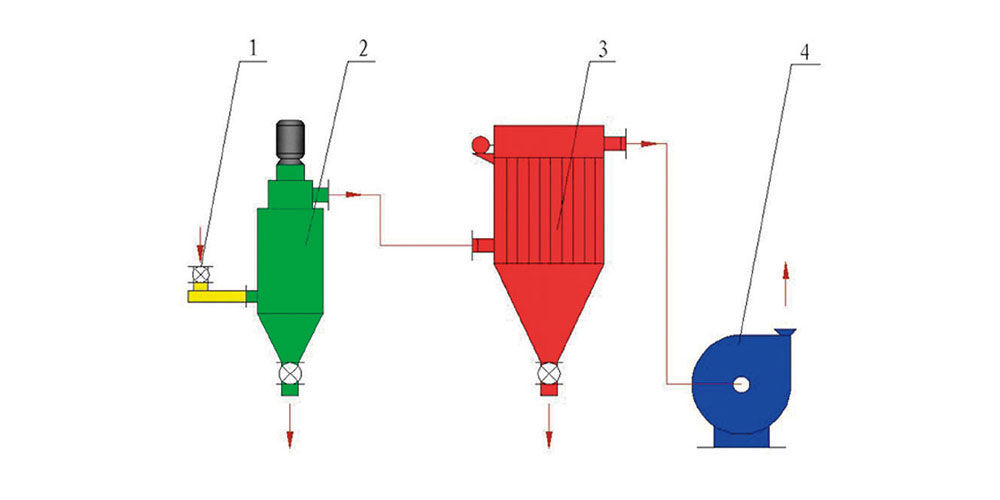

Flow Chart
Technical Parameters
Application Fields
1.Classifying of all kinds of powders, remove debris and break up.
2. Separating of coarse particles entrained by ultrafine powder and nano powder; classification of materials with high viscosity, strong agglomeration, difficult to disperse and poor fluidity.

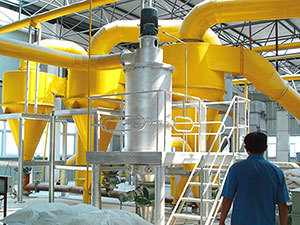

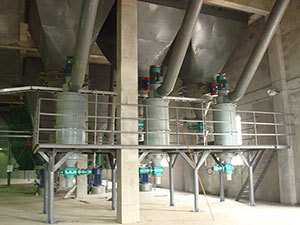

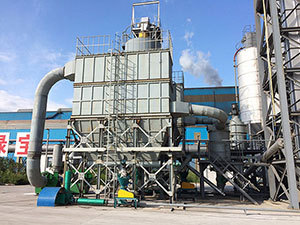

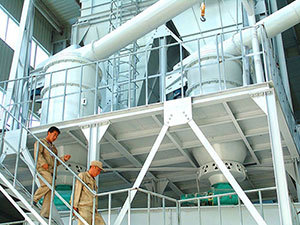

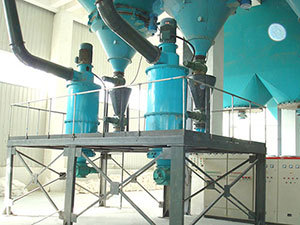

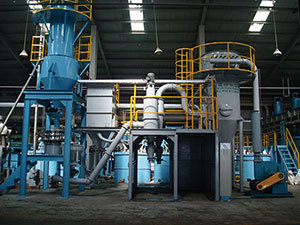

Product Project Cases
