LHB High- Temperature And High Efficiency Air Classifier
LHB High- Temperature And High Efficiency Air Classifier
The LHB High-temperature and high-efficiency air classifier is a new air classifier independently developed by our company. It combines the original self-division grading technology and centrifugal grading technology.
Contact us

Product  Description

Product Description

The LHB High-temperature and high-efficiency air classifier is a new air classifier independently developed by our company. It combines the original self-division grading technology and centrifugal grading technology. The grading medium makes full use of the high-temperature airflow in the production line (temperature can reach 100-300 °C). to achieve super-classifying.

The main features:

LHB High- Temperature And High Efficiency Air Classifier

Full And

Reasonable Use

LHB High- Temperature And High Efficiency Air Classifier

High Classifying
Efficiency

LHB High- Temperature And High Efficiency Air Classifier

Accurate Cutting

Points

LHB High- Temperature And High Efficiency Air Classifier

Strict Control Of Large Particles

LHB High- Temperature And High Efficiency Air Classifier

Large Processing

Capacity

LHB High- Temperature And High Efficiency Air Classifier

Low Energy

Consumption

LHB High- Temperature And High Efficiency Air Classifier

Strong

Stability

It is suitable for on-line grading and impurity removal in various high-temperature production lines. It can also be used for ultrafine powder and nano-powder to remove entrained coarse particles.

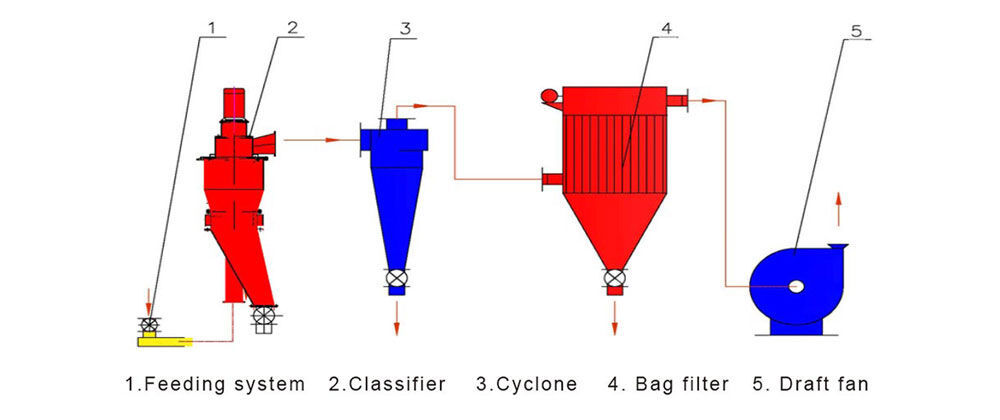

Flow Chart

LHB High- Temperature And High Efficiency Air Classifier


Technical Parameters

Data Model

LHB-400

LHB-500

LHB-600

LHB-700

LHB-800

Handling capacity (t/h)

0.2~0.3

0.5~0.7

1~1.5

2~2.5

4~5

Fineness (um)

2-150

2-150

2-150

2-150

2-150

Efficiency (η=%)

70-90

70-90

70-90

70-90

70-90

Main Power (kw)

11

22

37

55

90
