The material is fed into the crushing chamber quantitatively by the spiral feeding system. The rotor and stator are installed in the crushing chamber. The high-speed relative movement between the rotor and the tooth rod on the stator produces strong impact and counterforce between the material particles It is effectively homogenized and crushed to obtain a satisfactory ultra-fine powder
Working Principle
The material is fed into the crushing chamber quantitatively by the spiral feeding system. The rotor and stator are installed in the crushing chamber. The high-speed relative movement between the rotor and the tooth rod on the stator produces strong impact and counterforce between the material particles It is effectively homogenized and crushed to obtain a satisfactory ultra-fine powder product.
Performance Advantages

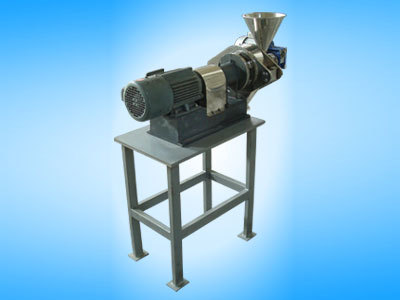

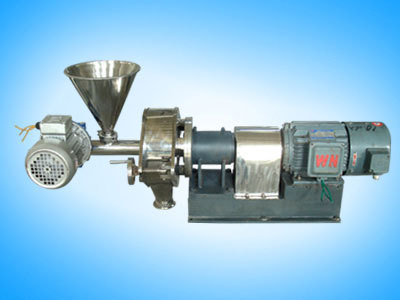

LHS laboratory horizontal impact mill is a new type of laboratory powder processing equipment independently developed by our company. It is suitable for universities, enterprises, and scientific research institutes. It can be used for pre-crushing or granulation of raw materials in pharmaceutical, food, chemical and other industries. Materials with a diameter greater than 200 mesh are crushed.
● The crushed parts are made of new composite wear-resistant materials, with long service life and no pollution to the micro powder.
● The core shell adopts the integrated design of stainless steel, and is subjected to precision polishing treatment, which has no pollution to the micro powder.
● The rotor speed can be adjusted, and the size of the mesh hole can be adjusted. By adjusting the speed and the size of the mesh hole, fine powder with different particle sizes can be obtained.
● The gas-sealed shaft seal and non-continuous oil seal are adopted, and the overall design fully complies with the GMP requirements of the pharmaceutical and food industries.
● Quick-open structure, the whole machine is easy to disassemble and clean, and it can carry out refueling operation in time.
● Ultra-quiet design, stable operation and no noise pollution
